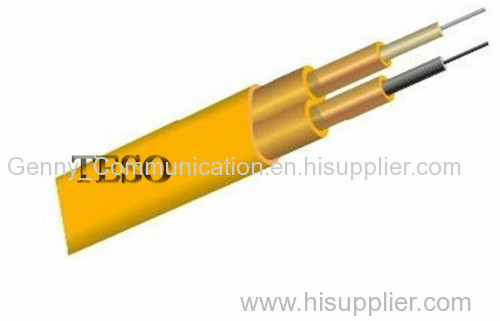

Duplex Fiber Optic Network Cable High Speed , Flat Fiber Optic Cable manufacturer from China SuperHighEnergy Technology(HK)CO.,LTD

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 4km/reel

Application: Telecommunications

Brand Name: TESO

Jacket: PVC, LSZH

Package: 4KM/reel or customized

Production Capacity: 10000000M/week

Delivery Date: 5-7days

Type: Optical Fiber

Certification: ROHS ,CE

HS Code: 854470000

1. Duplex single mode and multi mode fiber optic cable
2.Indoor optical fiber cable.
3.Used for inter connection ,pigtail and patch cord .

Quick Detail:

1. Duplex single mode and multi mode fiber optic cable

3.Used for inter connection ,pigtail and patch cord .

Features

*The design allows each unit to different positions.

*High strength, good bending performance, no filling compound, easy to operate and splice.

*Options available for single mode or multimode to facilitate use under special circumstances.

Applications

* Indoor level laying, vertical laying inside buildings, direct connecting outdoor cable to desk

* As pigtail of communication equipment and cable for patch cord and connectors.

Mechanical & Environmental characteristics

Fiber Optical cable Characteristics

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM (G652)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM (G652)
P/N Code(X)	62B	62A	50B	50A	OM3	9
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	-
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3.50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000/600	-
Link Length For 10G	-	-	-	-	300/	-

Tight Buffer Fiber cable Color

1	2	3	4	5	6	7	8	9	10	11	12
WH- White	BL- Blue	OR- Orange	GR- Green	BR- Brown	GY- Grey	RE- Red	BK- Black	YE- Yellow	PU- Purple	PI- Pink	AQ- Aqua

Note: The color of tight buffer fibers is arranged from No.1 color successively

Note:

See details of fibre specification in relevant Corning literature
The color identification of the buffer layer complies with the standard color identification set in GB13993.3-2001 Standard
S: short term; L: long term; T.B: tight buffer
Crush load: N/100mm; D: cable diameter

SM cable: white; MM cable: orange;

options available for other colors, PVC, LSZH or HYTREL materials upon request.
